Description:

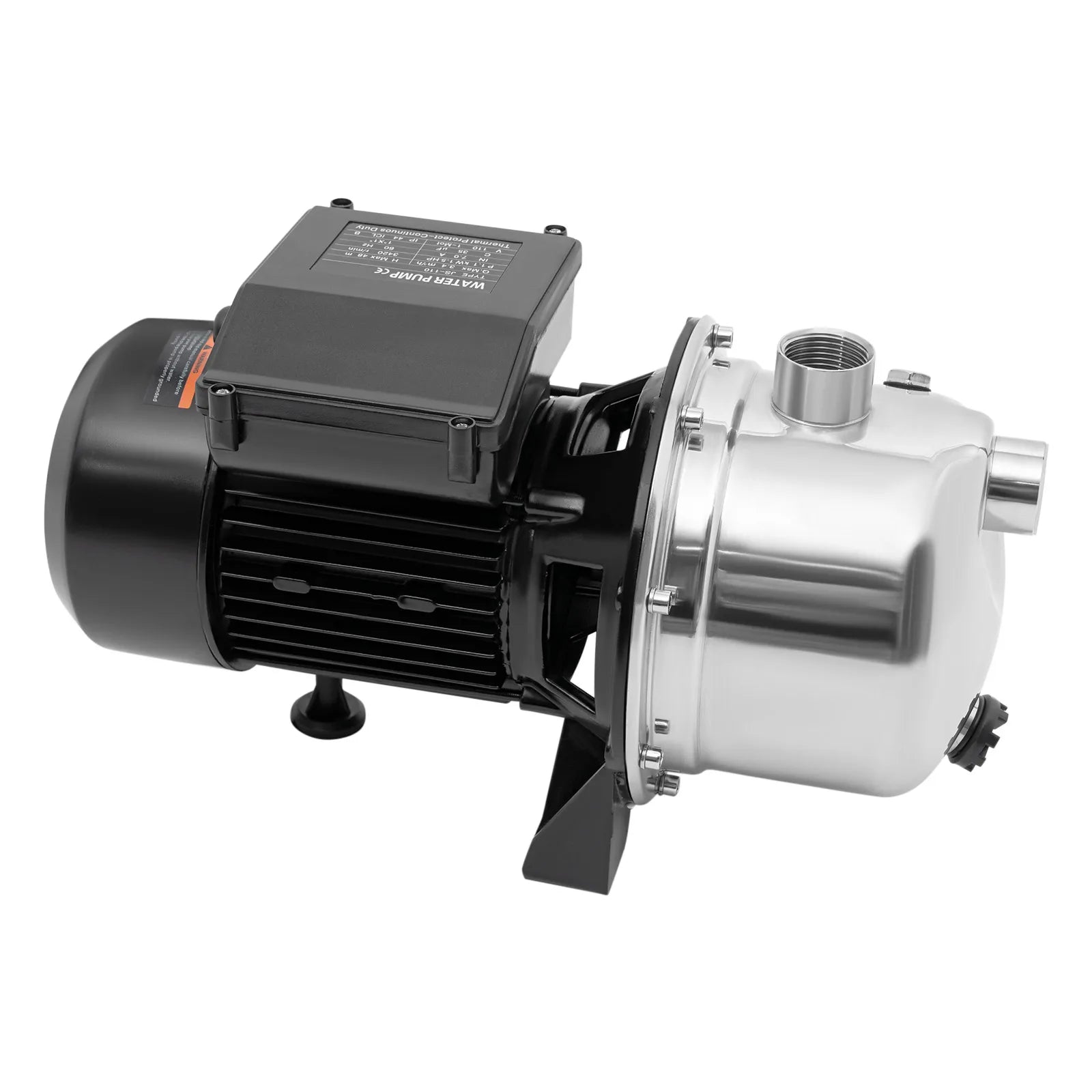

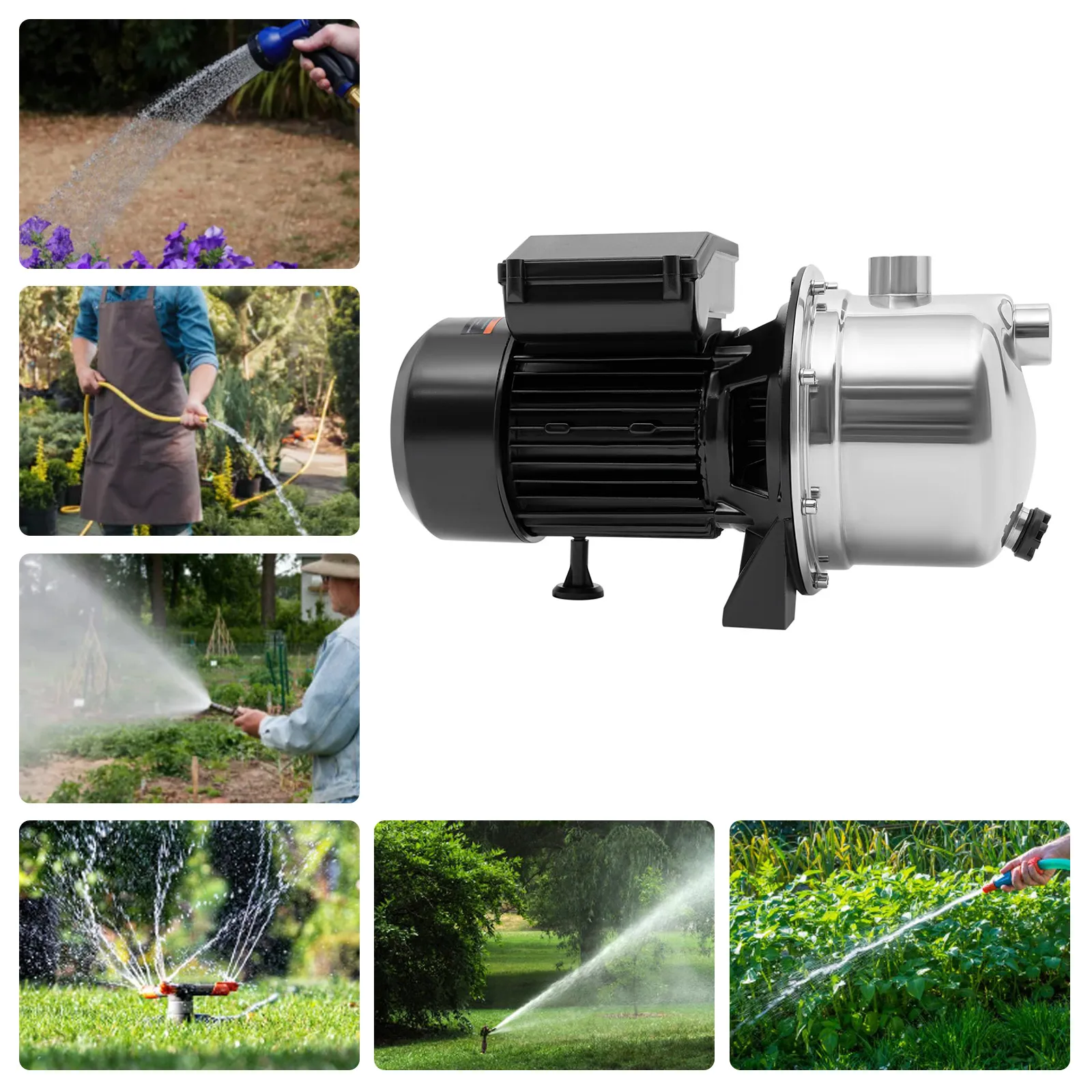

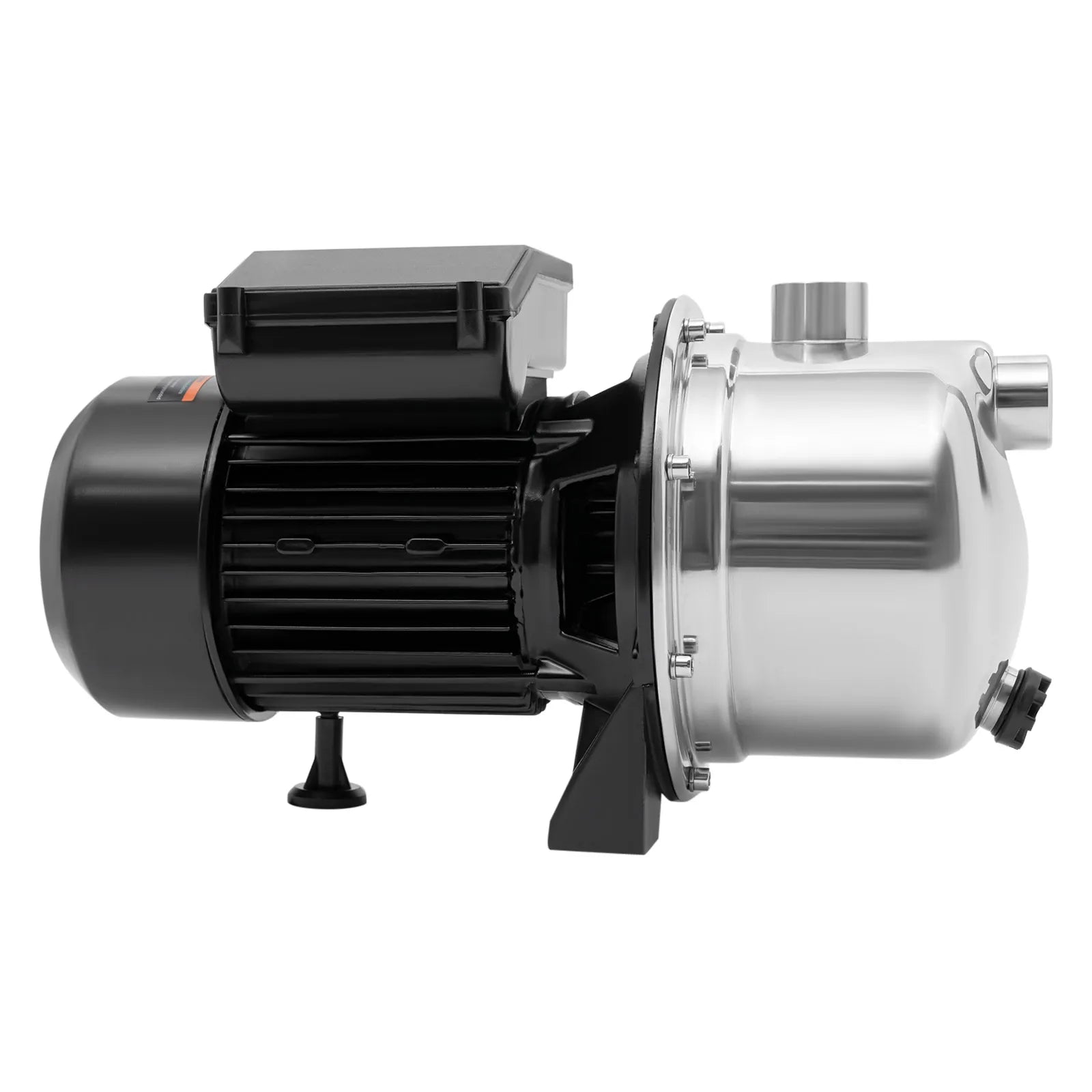

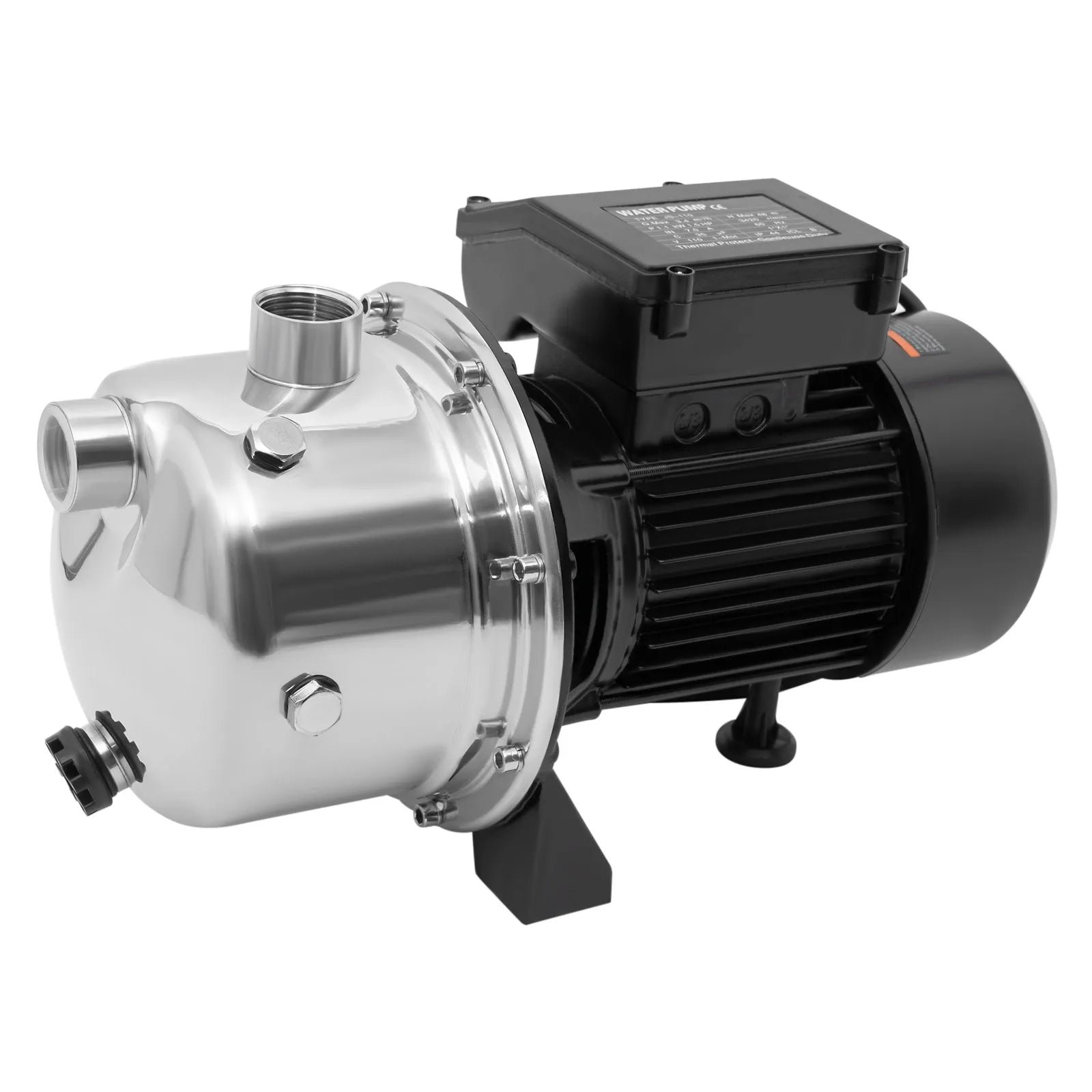

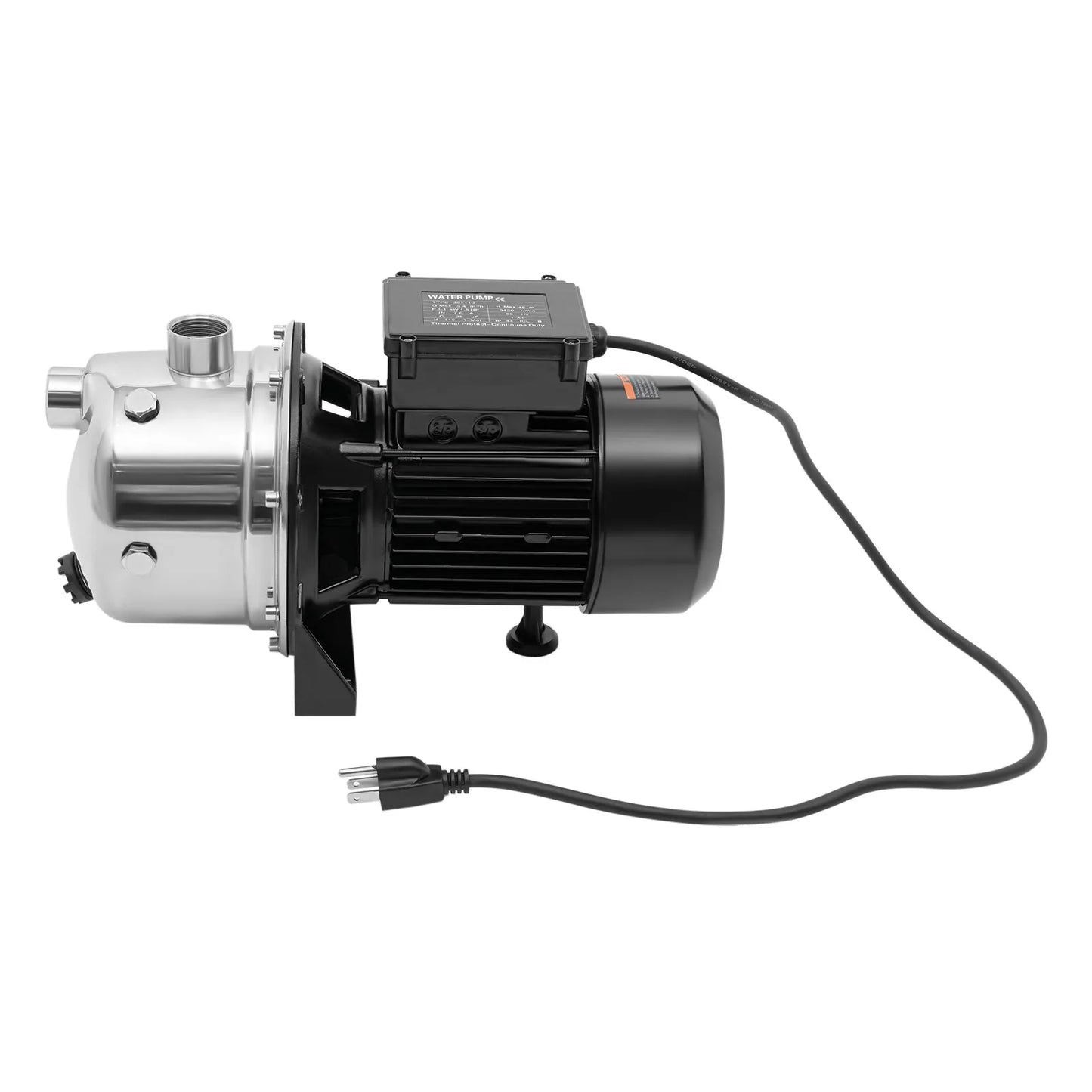

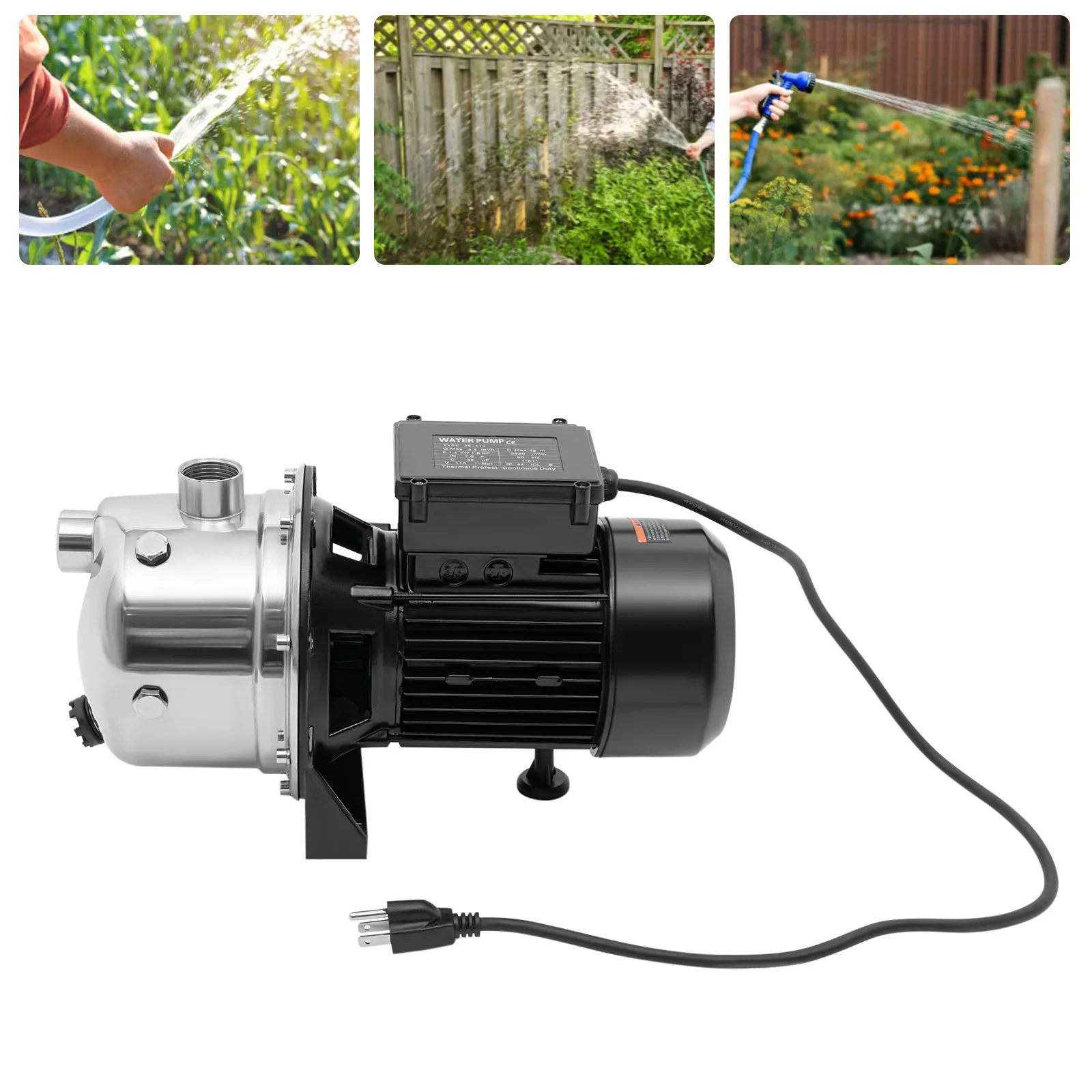

If you are looking for efficient and simple irrigation methods, take a look at our shallow well pump. Made of high-quality material, this pump provides quality assurance for your long-term use. Max 1100w power, 3420 rpm, and max.157.48ft lift make your work easier and more efficient. We believe it will be your assistant in agricultural production, breeding, or other work.
Details:
Standard Water Inlet and Outlet: The pump adopts an NPT 1-inch large diameter water inlet and outlet, which can be matched with different types of water pipes and is very practical.
Sealing Ring: The silicone sealing ring is used to avoid water leakage and reduce waste.
Support Block: The support block at the bottom better maintains the stability of the product and ensures smoother operation.
Drain Port: It can discharge the water in the pump body and improve the durability of the pump body.
Specification:
Material: Cast Iron, Silicon Steel, Aluminum, Stainless Steel, and Plastic
Color: Black
Process: Painting and Polishing
Motor: Pure Copper Motor
Assembly Required: Yes
Mounting Type: Floor Standing
Plug Type: US Standard
Number of Pieces: 1
Type: JS-110
IP Level: IP44
Waterproof Lever: IPX4
Capacitance: 35μF
Max. Mpa: 1Mpa
Max Temperature: 60°C/140°F
Standard Voltage: 110V, 60Hz
Maximum Voltage: 115V
Input: 7.0A
Power: 1100W(1.5hp)
Rotating Speed: 3420rpm
Water Pump Inlet: 1in
Water Pump Outlet: 1in
Max Sprinkler Volume: 3.4m³/h/898.18Gal/h
Noise: 30-50db
Maximum Delivery Lift: 48m/157.48ft
Maximum Pressure: 87 psi
Maximum Suction: About 8m/26.2 ft
Maximum Flow Rate: 1200 GPH
Gross Weight: 8.5kg/18.74lbs
Package Size: 40*22*28cm/15.75*8.66*11.02inch

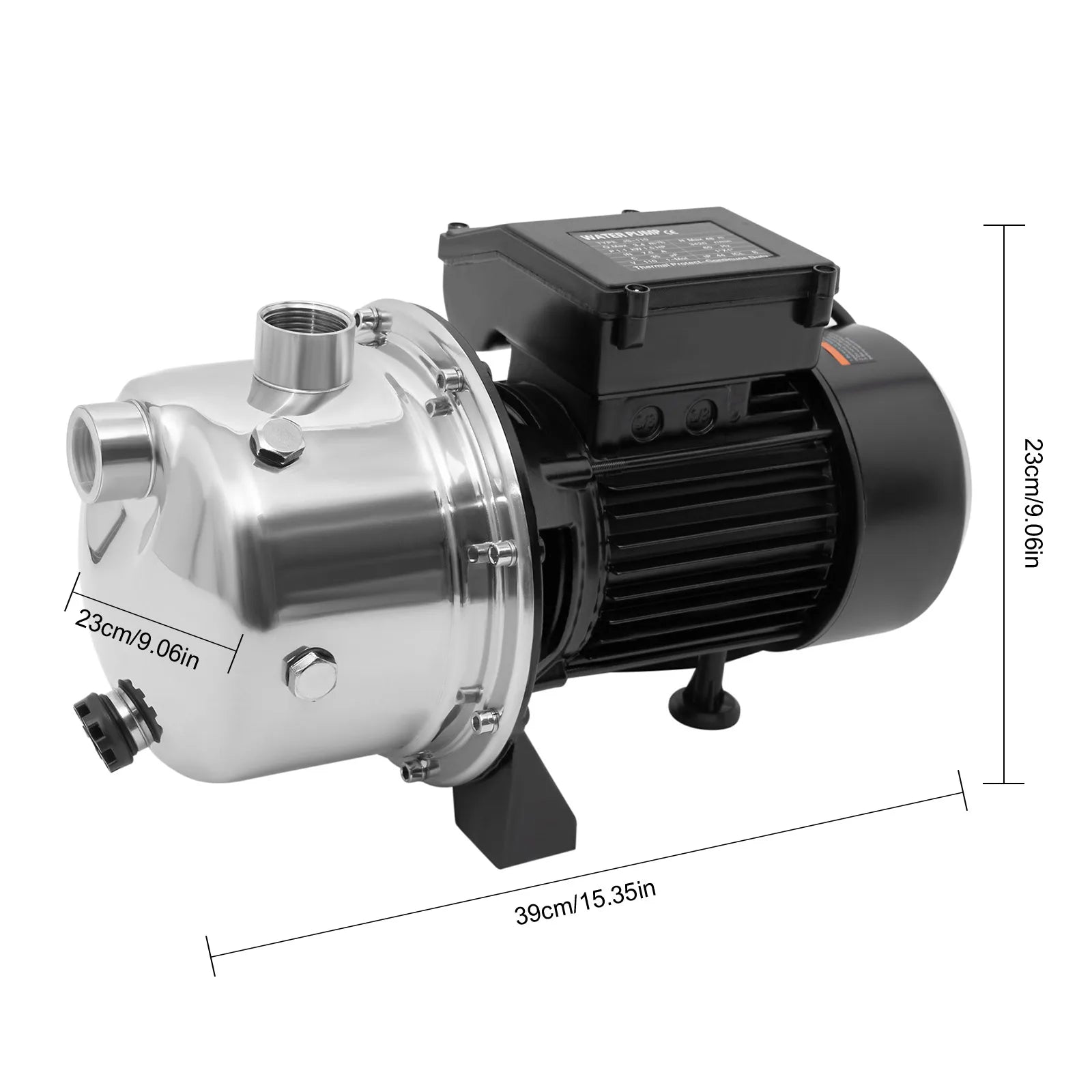

Product Size: 39*23*23cm/15.35*9.06*9.06inch
Package Included:
1* Shallow Well Pump
1* English Manual
Other Accessories for Installation
Note:
Please that 115V refers to the standard voltage of 110V and up to 115V.
Adding water to the pump head until it is full helps to speed up the inlet flow rate. The inlet pipe(Not Included) shall not be excessively bent and the end pipe (not included)shall be completely submerged. Please that it is only suitable for clean water.
Please read the operating manual completely before use, and pay particular attention to the safety instructions included. Please discharge the waste water if not used frequently and please do not run the pump without water.
Please do not wet the motor before first use, and fill the pump head with water to wet the impeller. Please perform a water test after the installation is complete to check for leaks and other conditions.
Please make sure that the air inlet joint or pipe is completely sealed and air-tight, and that hose used for the water inlet pipe is not sucked and deflated. Check the coupling to see if the internal drive is damaged.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
Key Features:
Build to Last: The pump is made of high-quality cast iron, silicon steel, aluminum, stainless steel, and plastic, and adopts painting and polishing processes making it solid, and not prone to rust and corrosion, so it can keep beautiful and practical for a long time.
High Efficiency: The 1100W pure copper motor, 3420rpm speed, 1200GPH maximum flow rate, 26.2 ft maximum suction, 87 psi maximum pressure, and tight bearing make your pumping and watering work faster and easier with less noise(30-50db).
Large Delivery Lift: The maximum lift of the pump is 157.48ft, which allows you to irrigate farmland, fish ponds, and orchards for a long distance, saving the time and cost of manual transportation.
Safety Guard: It has built-in thermal, IP44 waterproof level, overload protection, and is equipped with uniform heat dissipation holes and a fan, which can timely reduce the temperature during operation, and reduce potential safety hazards, thus extending the service life of the product.
Protective Package: Our product is packaged with foam and air column bag to maximize protection from damage during shipping.
Easy to Use: With an instruction manual, you just need to follow the steps in the manual to pump, sprinkle, etc.
Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
